What is an ICCID Number?

An ICCID (Integrated Circuit Card Identifier) is a unique 19-22 digit serial number that permanently identifies every SIM card worldwide. Unlike phone numbers which can be reassigned, the ICCID is burned into the SIM chip during manufacturing and remains unchanged throughout the card’s entire lifecycle.

Key ICCID Facts:

• Defined by ITU-T recommendation E.118 and ISO/IEC 7812 standards
• Every active SIM card has a globally unique ICCID number
• Used for SIM authentication, inventory tracking, and service provisioning
• Cannot be changed or reassigned (permanent identifier)
• Printed on physical SIM cards and stored in eSIM profiles

Why ICCID Management Matters for Multi-Operator Deployments

Your logistics operation runs 50,000 sensors across 25 countries using five IoT providers. When 500 devices go offline, your team opens five carrier portals, downloads separate CSV files, and spends days reconciling device IDs with ICCIDs and billing accounts.

Without centralized ICCID management, every troubleshooting task becomes a multi-system reconciliation project.

The ICCID is your universal reference across every carrier portal, API, and billing system. It’s how you track which SIM is in which device, which operator it’s connected to, and whether it’s active or suspended.

For telecom operations managers running multi-operator IoT deployments, centralized ICCID management transforms manual, time-consuming processes into automated, scalable operations.

ICCID Number Format: Structure Explained

ICCID numbers aren’t random digits. Every ICCID follows the ITU-T E.118 standard with a precise hierarchical structure revealing the SIM card’s origin and issuer.

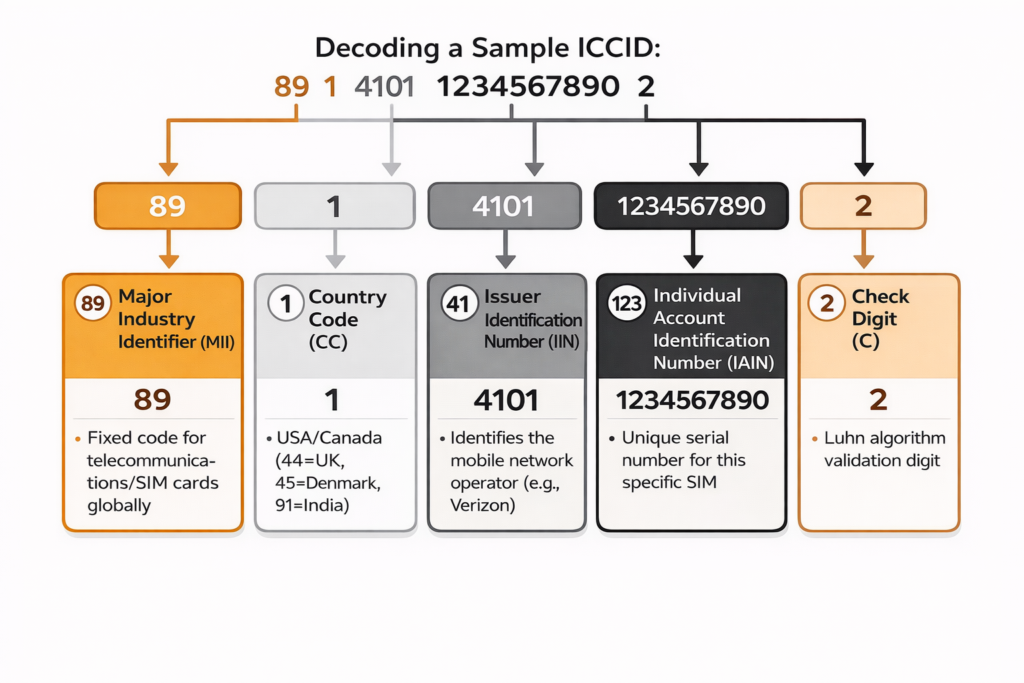

ICCID Format Breakdown

Standard Format: 89 [CC] [IIN] [Individual Account ID] [C]
Example ICCID: 89 1 4101 1234567890 2

The Luhn Algorithm:  Built-In ICCID Validation

The final check digit is calculated using the Luhn algorithm (Mod 10), which validates the entire ICCID’s integrity and helps networks quickly detect transposition errors or corrupted numbers.

ICCID Length: Why It Varies (19-22 Digits)

While ITU-T E.118 specifies a maximum of 19 digits, GSM Phase 1 specifications allow up to 20 digits using Binary Coded Decimal (BCD) encoding with “F” as padding when necessary.

In 2026, most carriers use:

• 20-digit format consistently across SIM inventory
• 19-digit format for some legacy systems
• eSIM profiles typically follow 20-digit standard

Why ICCID Structure Matters for Operations

Understanding ICCID format enables you to:

• Identify the carrier at a glance without checking documentation
• Verify SIM authenticity using the check digit before activation
• Organize inventory by grouping SIMs from the same issuer
• Troubleshoot faster by knowing which carrier’s support to contact
• Detect fraud through Luhn algorithm validation

How to Find Your ICCID Number (All Devices)

Physical SIM Cards

The ICCID is typically engraved or printed on the card itself, usually on the back beneath the barcode or microchip.

1. Modern Smartphones

iPhone (iOS 17+): Settings → General → About → scroll to ICCID
Android (Android 16+): Settings → About Phone → Status → SIM Status

2. IoT Devices and Modems: AT Commands

For enterprise deployments, engineers retrieve ICCIDs programmatically:

Standard AT Commands:

• AT+CCID (most modules from SIMCom, u-blox, Telit)
• AT+QCCID (Quectel-specific modules)

Example:

>> AT+CCID

<< 89014103271090001234567

OK

3. Quick Dialer Code

Many phones support dialing *#06# to instantly display IMEI, ICCID, MSISDN, and other device identifiers.

This programmable access is essential for automated device provisioning, remote diagnostics, bulk ICCID extraction, and integration with asset management systems.

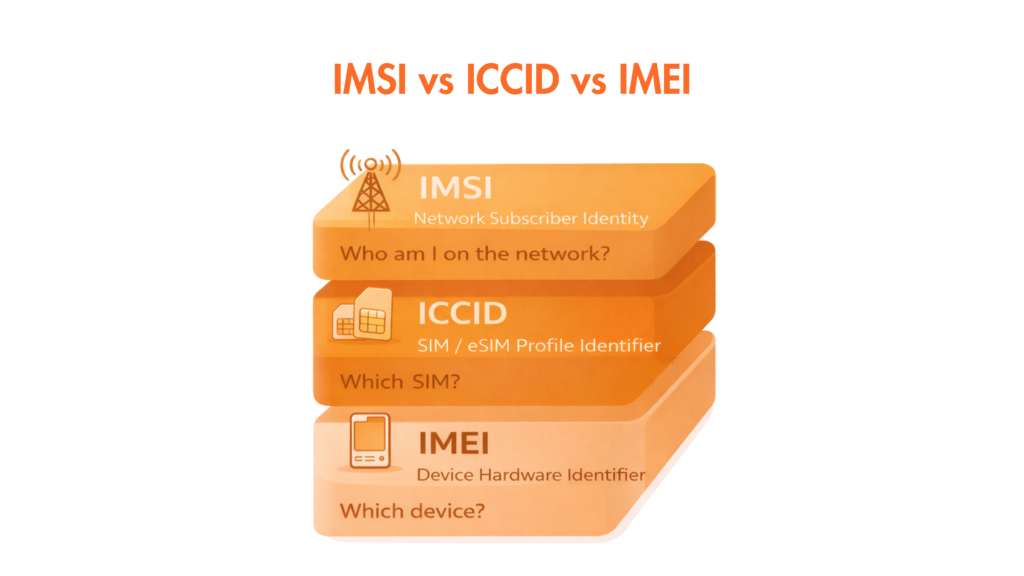

The Identity Cheat Sheet: ICCID vs IMSI vs IMEI

This is where most IoT managers hit a wall. Your connected devices have multiple identifiers, each serving a distinct purpose. Mixing them up during troubleshooting can cost hours of wasted effort.

The ICCID identifies your SIM card, the IMEI identifies your device, and the IMSI identifies your network subscription. For IoT operations, the ICCID is your primary tracking reference because it remains permanent and links directly to carrier billing, inventory systems, and provisioning workflows, even when devices, phone numbers, or network profiles change.

Practical Troubleshooting Scenarios

Device Offline Investigation:

1. Check ICCID to verify which SIM is installed
2. Use IMSI to confirm which network profile is active
3. Reference IMEI to identify the specific device hardware
4. Cross-check MSISDN if phone number routing is relevant

Switching Carriers with eSIM:

• EID stays the same (it’s the chip hardware)
• New ICCID is assigned (new eSIM profile)
• New IMSI is provisioned (new network subscription)
• IMEI remains unchanged (same physical device)

Now that you understand ICCID structure, let’s see how it breaks down at scale.

Why ICCID Numbers Matter for IoT Management in 2026

The cellular IoT market is experiencing a critical transition in 2026. Businesses are scaling from pilot projects to production fleets of thousands or millions of devices, making robust ICCID management non-negotiable.

Further read : Ultimate Guide to Every IoT Connectivity Type in 2025 – Spenza

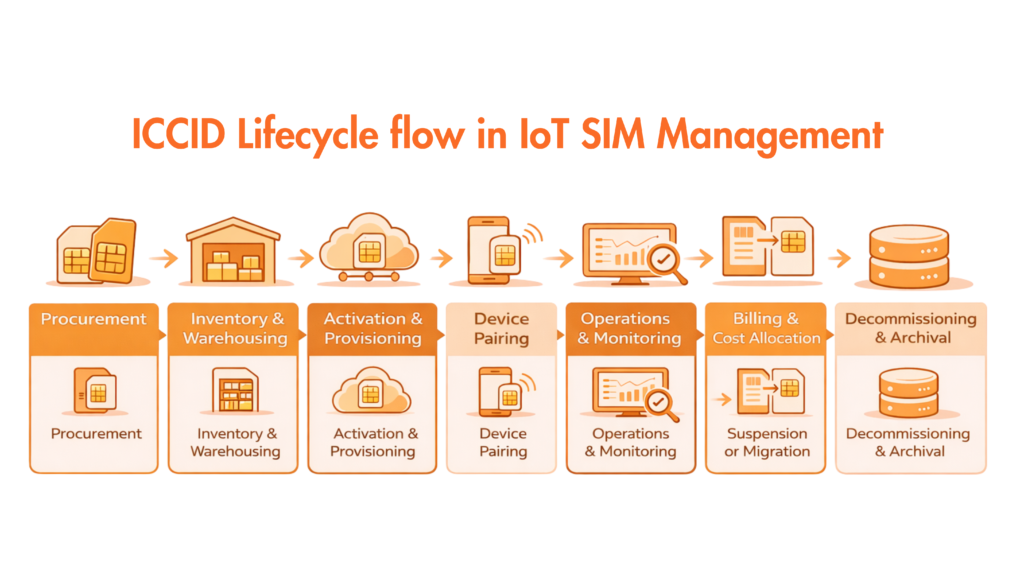

1. ICCID for Inventory & Lifecycle Management

When you receive a shipment of 10,000 IoT sensors, the ICCID number is what you scan to log them into your ERP system. Throughout a device’s operational life, the ICCID serves as the primary lookup key for:

• SIM stock levels across multiple warehouses and countries
• Activation status (virgin, activated, suspended, terminated)
• Carrier assignment and plan details
• Device pairing (which ICCID is installed in which IMEI)
• Troubleshooting (key you provide to carrier support)
• Decommissioning (ICCIDs must be properly deactivated to stop billing)

2. The eSIM Revolution: Multiple ICCID Numbers Per Device

With global eSIM-enabled device shipments projected to exceed 633 million in 2026, the relationship between hardware and connectivity is fundamentally changing.

Critical insight: Even with eSIM technology where you can swap network profiles (IMSIs) remotely, the ICCID remains your stable reference point for profile identity.

Understanding the Dual-Identifier System:

• EID (Embedded Identity Document): Permanent 32-digit identifier hardcoded into the eSIM chip
• ICCID: Unique identifier for each network profile downloaded onto the eSIM
• One eSIM = Multiple ICCIDs: A single device can store multiple carrier profiles, each with its own unique ICCID

Practical Example – International IoT Deployment:

• Deploy 50,000 smart meters with eSIM chips
• Each device stores 3 carrier profiles (3 unique ICCID numbers)
• Primary ICCID handles daily telemetry
• Backup ICCIDs activate automatically if primary fails
• Central platform monitors which ICCID is active per device

3. Multi-Carrier ICCID Management

In 2026, enterprises leverage multiple carriers for:

• Geographic coverage optimization (Carrier A for urban, Carrier B for rural)
• Cost arbitrage (switching to cheaper local carriers per region)
• Redundancy and failover (automatic switching if primary carrier fails)
• Regulatory compliance (local carriers required in certain countries)

Managing connectivity across 5, 10, or 25 different IoT providers means tracking hundreds of thousands of ICCID numbers across different billing cycles, API integrations, and support contacts.

Further read : Single-carrier IoT risks

The ICCID is the universal identifier that ties all these disparate systems together.

4. SGP.32 Remote SIM Provisioning

The GSMA SGP.32 Remote Provisioning Architecture is transitioning from theoretical standard to operational reality in 2026, enabling:

• Deploy devices with bootstrap profiles (initial ICCID)
• Remotely provision production profiles (new ICCIDs) after installation
• Switch carriers mid-lifecycle (different ICCIDs) based on performance
• Manage up to 10 profiles per device (10 unique ICCID numbers)

Your platform must track which ICCID is active, which are stored, and which have been deleted, across potentially millions of devices.

Real-World ICCID Applications in IoT

1. Fleet and Asset Tracking with ICCID Management

Logistics companies use ICCID numbers to manage vehicle trackers across international operations:

• Real-time location monitoring via ICCID-linked devices
• Geofence automation triggering alerts when specific ICCIDs enter/exit zones
• Cross-border connectivity with automatic carrier switching
• Driver behavior analytics linked to ICCID data
• Maintenance prediction correlating ICCID connectivity patterns with vehicle health

2026 Case Study: A global shipping company manages 45,000 container trackers across 180 countries. Their ICCID-based system automatically provisions local eSIM profiles when containers arrive in new ports, reducing roaming costs by 73%.

2. Smart Energy: ICCID in Utility Meter Management

Power and water companies deploy smart meters with cellular connectivity across millions of locations. ICCID-based tracking enables:

• Remote firmware updates via ICCID-identified devices (no truck rolls)
• Outage detection identifying offline meters instantly
• Automatic failover switching to backup carrier if primary fails
• Billing integration linking meter readings to ICCID for usage-based charging
• Compliance reporting documenting connectivity status per ICCID

2026 Case Study: A European utility manages 2.3 million smart meters with eSIM profiles. Their ICCID management platform automatically switches profiles when signal quality degrades, maintaining 99.97% uptime across their meter fleet.

3. Industrial IoT: ICCID for Manufacturing Automation

Factories deploy connected sensors and controllers with SIMs registered by ICCID:

• Predictive maintenance monitoring equipment via ICCID-linked sensors
• Production line optimization with real-time analytics from ICCID-identified devices
• Quality control integration linking sensor readings to specific batches
• Remote troubleshooting using ICCID as primary device identifier
• Security monitoring detecting unauthorized connections via ICCID validation

Common ICCID Challenges and Solutions

1. Mixed Standards Across Carriers

Problem: Your deployment uses SIMs from 8 carriers. Some ICCIDs are 19 digits, others 20. Carrier A’s API returns ICCID with spaces, Carrier B as a continuous string.

Solution:

• Implement normalization layer that strips formatting and stores ICCIDs in canonical form
• Use validation libraries that accept both 19 and 20-digit formats
• Consider aggregation platforms that handle normalization automatically

2. Data Reconciliation After Migration

Problem: Migrating 50,000 devices from legacy single-carrier to multi-carrier eSIM. Historical data tied to old ICCIDs. How to maintain continuity?

Solution:

• Create ICCID mapping table: old_ICCID → device_IMEI → new_ICCID
• Implement data pipeline that joins old and new ICCID records by IMEI
• Maintain legacy ICCID references for regulatory compliance periods (5-7 years)

3. Troubleshooting at Scale

Problem: 500 devices report connectivity issues. Support team must check ICCID activation status across 5 different carrier portals. Resolution takes days.

Solution:

• Centralize ICCID management in single-pane-of-glass platform
• Implement automated health checks that query activation status by ICCID
• Use platforms with bulk operations (check 500 ICCIDs simultaneously)

As IoT deployments scale from thousands to millions of connected devices, ICCID management stops being a technical detail and becomes an operational discipline. The challenge is no longer understanding what an ICCID is, but controlling how it moves through procurement, activation, monitoring, billing, and decommissioning across multiple carriers and regions. When ICCIDs live in fragmented carrier portals, spreadsheets, and disconnected systems, visibility breaks down and costs quietly accumulate. This is where centralized platforms move from “nice to have” to essential infrastructure.

How Spenza Simplifies ICCID Management

Managing thousands of ICCIDs across multiple carriers shouldn’t require logging into five portals and reconciling spreadsheets.

Manual ICCID Management vs. Spenza Platform

Platform Capabilities

Unified Dashboard

• All ICCIDs from every carrier in one interface
• Real-time status and data consumption tracking
• Human-readable labels: “Warehouse Sensor #47” instead of 19-digit strings

Bulk Operations

• CSV upload or REST API for activating thousands of ICCIDs simultaneously
• Batch actions by filter criteria
• Scheduled activations for staged deployments

Intelligent Alerting Instant notifications when ICCIDs exceed usage thresholds, show zero activity, or enter unexpected states. Delivered via email, SMS, webhook, or Slack/Teams.

Procure-to-Pay Integration End-to-end workflow: marketplace procurement → inventory tracking → activation → monitoring → invoice reconciliation → unified payment.

Enterprise Systems REST API for integration with SAP, Salesforce, ServiceNow, and Datadog.

Conclusion: The Foundation of Connected Operations

In the era of trillion-device IoT, cellular connectivity is infrastructure. And like all infrastructure, it requires systematic management, precise tracking, and operational discipline.

The ICCID is the foundation of that discipline.

It’s the immutable identifier that ties together your inventory, your devices, your carriers, your billing, and your compliance. Without accurate ICCID management, you’re not running an IoT operation, you’re running a crisis waiting to happen.

The companies that master ICCID management in 2026 will operate faster, troubleshoot more efficiently, optimize costs more effectively, and scale more confidently than their competitors.
